Perforating/Cut Crease/Wave Edge Rules

We provide various size of perforating rules to meet different need

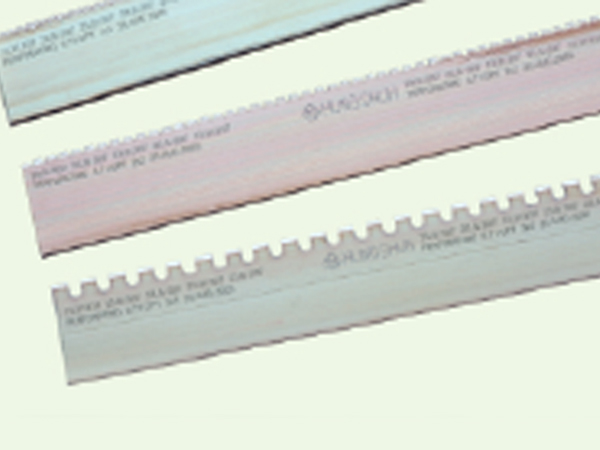

Perforating Rules
Thickness 0.71mm
Height 23.60mm-23.80mm
Bevel Angel <42 , <52
Hardness-Body HS52
Hardness-Tip without hardened tip:same with body hardness with hardened tip:HS72(HV630)
Tooth-Sizes 1*2 2*1 2*2 3*1 3*3
Application To make tearing line or folding line on card , corrugated paper, label,etc.

Unit:mm

Type Tooth Gap Thickness Depth Height
1*1 1.0 1.0 0.71 2.5 23.6/23.8
2*1 2.0 1.0 0.71 2.5 23.6/23.8
2*2 2.0 2.0 0.71 2.5 23.6/23.8
3*1 3.0 1.0 0.71 2.5 23.6/23.8
3*3 3.0 3.0 0.71 2.5 23.6/23.8
